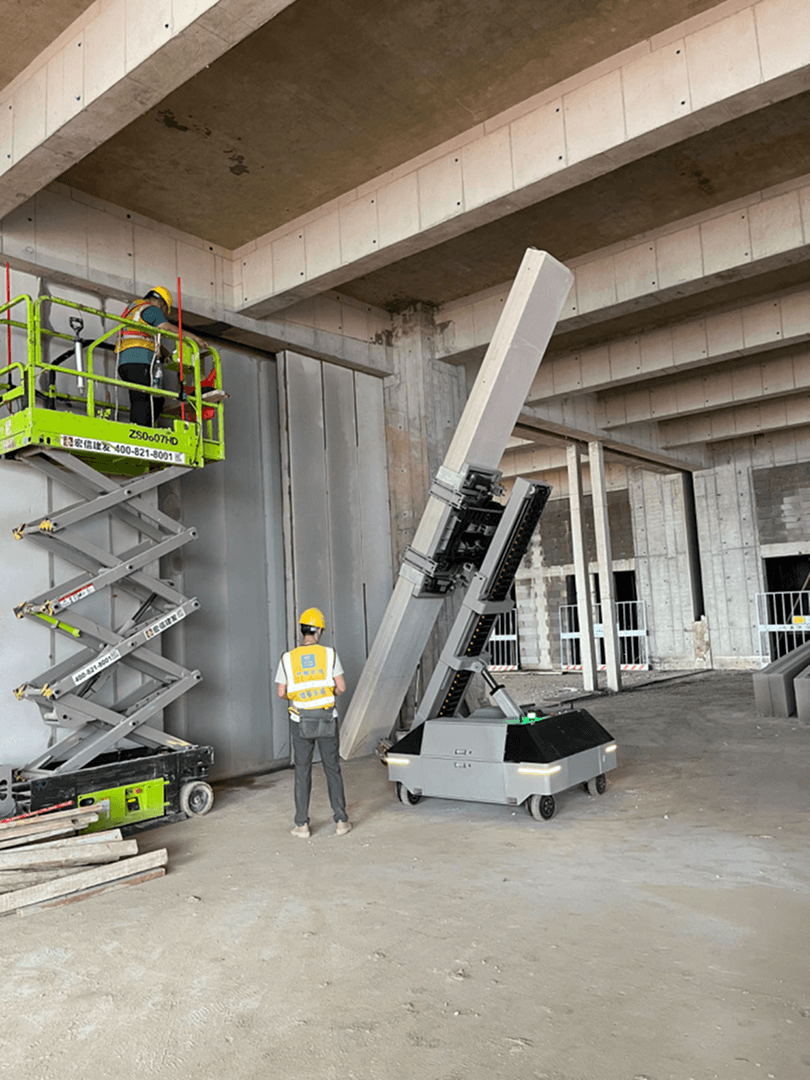

The ZI-V2 streamlines wall panel installation so that fewer workers can achieve the output of a much larger crew. What once required five people can now be done with just three, doubling efficiency while reducing manpower costs.
By integrating with the app, the robot plans stacking and installation with precision. This reduces cutting errors and material wastage, ensuring significantly higher utilization of every panel.
With its non-contact automated clamping and wireless tablet control, workers never need to physically push, shoulder, or risk mishandling panels. The result is safer worksites, intact materials, and greater overall reliability.

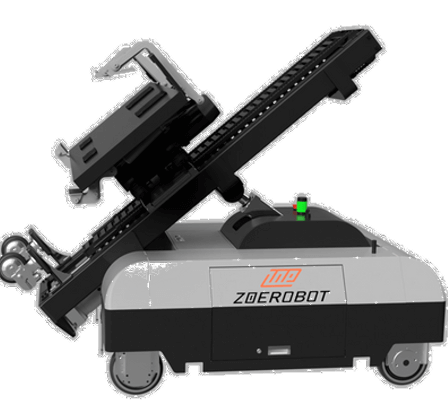

ROBOTEquipped with upper and lower double-claw automated clamping, the ZOEROBOT robot achieves zero-contact panel handling, preventing damage and ensuring stability throughout pickup and placement. Its servo control system delivers precise motion for lifting, pitching, and alignment, while four-wheel steering with zero turning radius enables agile movement even in tight spaces.
With wireless control via an 8-inch industrial tablet, operators can manage installation safely and efficiently after just half a day’s training. Integration with Ant Hong Software allows smooth coordination of material ordering, stacking, and installation, ensuring a well-orchestrated workflow.
The Wall Panel Installation Robot is most suitable for projects where speed, safety, and precision are critical, such as High-rise residential projects (e.g., HDB, condos, apartments), Commercial buildings (offices, malls, hotels), Public infrastructure (hospitals, schools, stations), Prefabricated & industrial construction. It is most effective in large-scale, high-volume construction projects where traditional manual panel installation would otherwise be slow, risky, and labor-intensive.

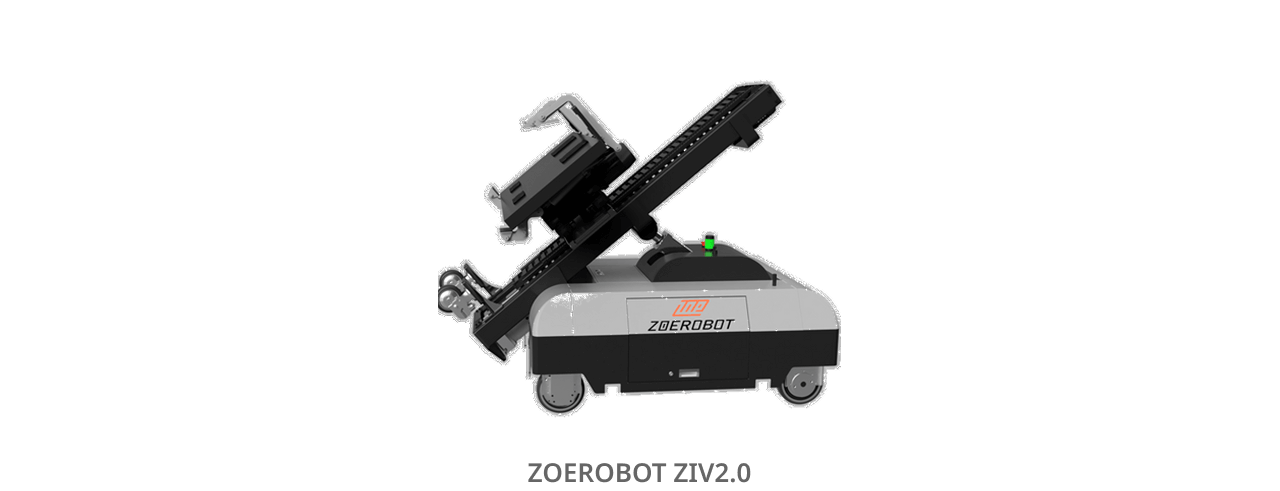

| ZOEROBOT ZIV2.0 ALC Wall Panel Installation Robot | |
|---|---|
| Dimensions (L x W x H) | (1600 x 1200 x 1800) mm |
| Wall Panel Size Suitablity | 0-6m |
| Use Cases | Commercial and Residential |
| Efficiency | 8 minutes/block (2-3 times faster than human productivity ~ 16 mins/block) |
| Manpower | 3 man + 1 robot (compared to traditional 5 man teams) |
| Movement | 4-wheel steering with zero turning radius |
| Battery Life | 8 Hours |
| Operation | Automated Panel Picking, Wireless Remote Control Technology (controlled by a tablet via WiFi), Servo Control Technology |
| Software | Android Operating App. Connects with Ant Hong Software for smooth installation and operation |
| Safety Mechanisms | Emergency stop button, sound and light alarm, battery protection etc. |
Whether you're looking to invest in a unit for long-term use or need a rental option for short-term painting projects, we offer flexible plans and packages tailored to your specific needs. Contact us today to find the best solution for your business!
